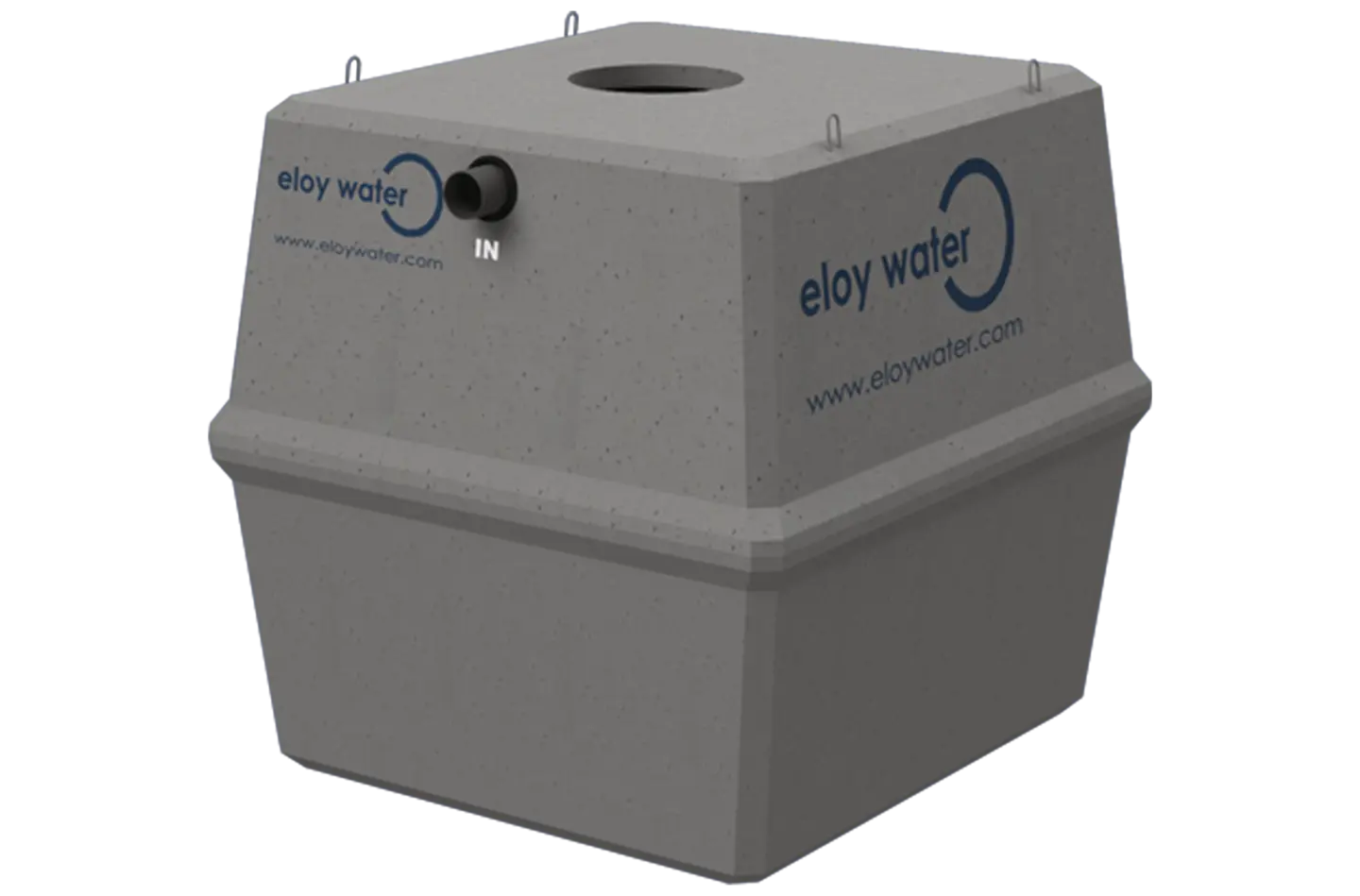

waterfix® C-90 of 10 m³
Regnvattenåtervinning
ref. WATWWC9010
Karakteristika
- c Lightweight vehicle traffic ≤ 3.5 t - Fiber concrete B125
- 1 Monotank
Produktinformation, annat
- 10 10 years warranty on the tank
Regler och standarder
storlekssortering

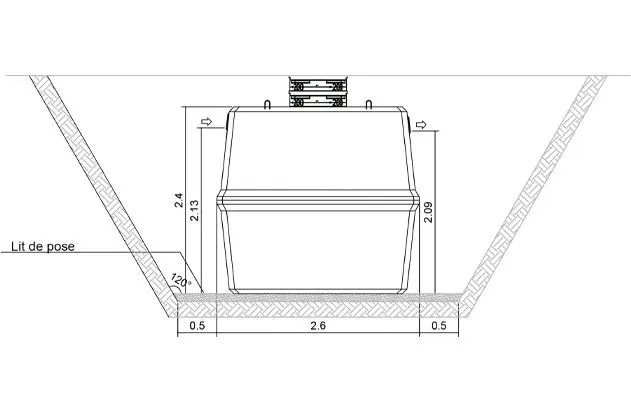

| mått | enhet | moms |
|---|---|---|
| total height | cm | 240 |
| entrance height | cm | 213 |
| output height | cm | 209 |
| length | cm | 260 |
| width | cm | 238 |
| total volume | m³ | 10.18 |
| usable volume | m³ | 9.26 |
| weight | t | 5.8 |
| access manhole(s) | cm | 1 x 62 |
| input (in) / output (out) | mm | 160 / 160 |
Produktens sammansättning
- 1 rain water tank
