greastop C-90 6m³ – 5 l/s
Fettavskiljare
ref. DEGWWC906-T01
Karakteristika
- c Lightweight vehicle traffic ≤ 3.5 t - Fiber concrete B125
- 1 Monotank
Produktinformation, annat
- 10 10 years warranty on the tank
Regler och standarder
storlekssortering
| mått | enhet | moms |
|---|---|---|

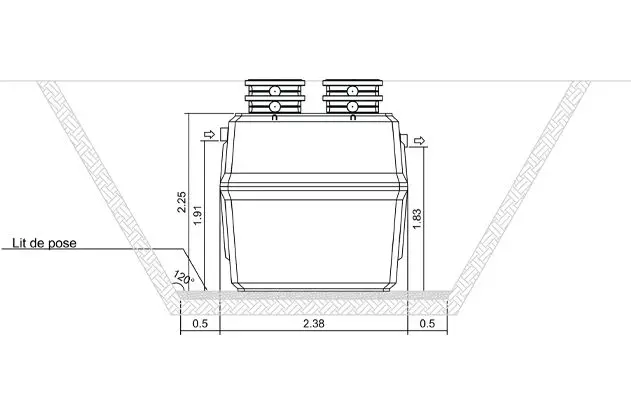

| total height | cm | 225 |
| entrance height | cm | 191 |
| output height | cm | 183 |

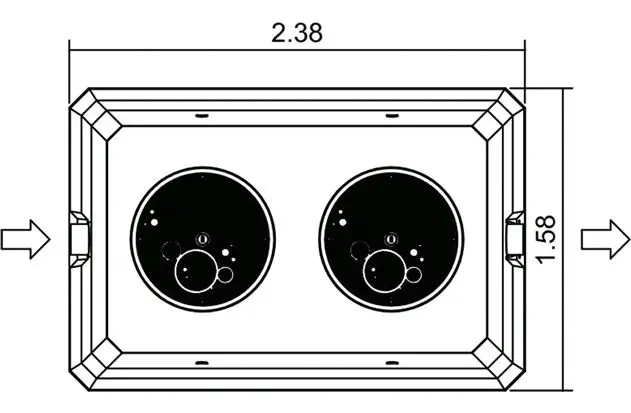

| length | cm | 238 |
| width | cm | 158 |
| total volume | m³ | 5.73 |
| usable volume | m³ | 4.79 |
| weight | t | 2.65 |
| access manhole(s) | cm | 2 x 62 |
| input (in) / output (out) | mm | 160 / 160 |
| rated flow rate | l/s | 5 |
Produktens sammansättning
- 1 dégraisseur
- 1 grease trap
Dokument
risers in concrete 100 x 100 x 90
REHBET10010090
risers in concrete 100 x 100 x 60
REHBET10010060
risers in concrete 100 x 100 x 30
REHBET10010030
risers in concrete 80 x 80 x 70
REHBET808070
risers in concrete 80 x 80 x 52
REHBET808052
risers in concrete 80 x 80 x 35
REHBET808035
risers in concrete 50 x 50 x 30
REHBET505030
risers in concrete 40 x 40 x 30
REHBET404030
coconuts anti-odour filter
FILTODEURCOCO
greases level alarm
ALANIVGRA-GAD531-20M
greases and sludges level alarm
ALANIVGRABOU
PE lightweight lid ⌀600
TRAPPEA15D620KIT-T02
risers in concrete 60 x 60 x 30
REHBET606030
PE riser extension
REHPEL1200D620KIT
PE riser 200 mm
REHPEL200D620KIT-T02
